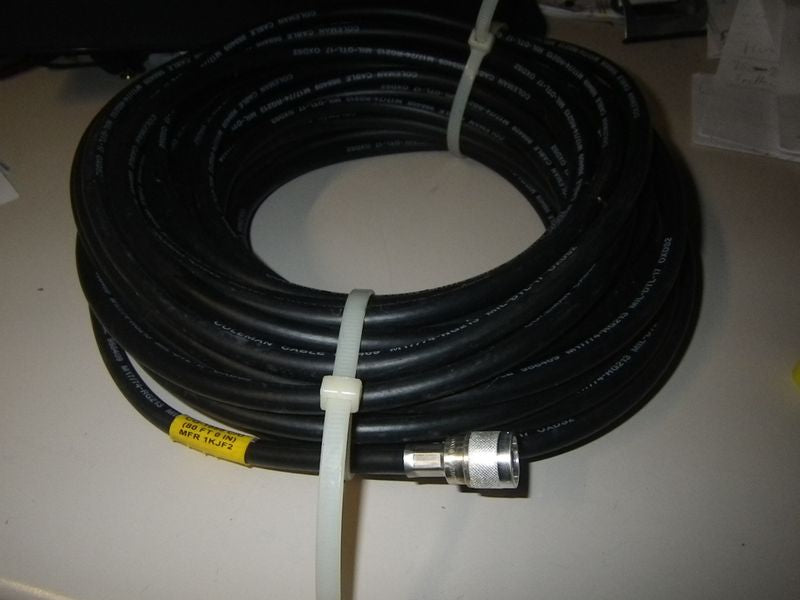

Antennenkabel 24,4m lang Coax  / antenna cable 80 feet for OE-254 Antenna

NEU / NOS

NSN: 5995-01-085-1665

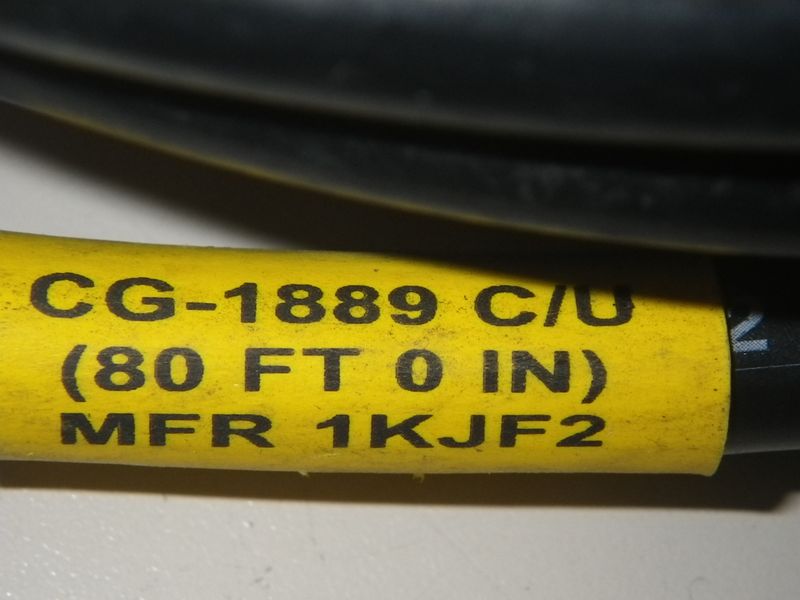

P/N: CG-1889 C/U

Länge: 80 feet = 24,4 meter

Hochwertige Militärqualität, auch für Amateurfunk und CB -Funk

5995-01-085-1665 Features:

Overall Length: 80.000 feet = 24,4m
Electrical Resistance 50.0 ohms impedance
Cross Section Outside Diameter 0.405 inches nominal
Conductor Quantity 1
Strand Quantity per Conductor 7 single conductor
Conductor Form Stranded single conductor
Round Conductor Size 13 awg single conductor
AWG Size per Conductor 21 single conductor
Conductor Arrangement and Quantity 1 coaxial

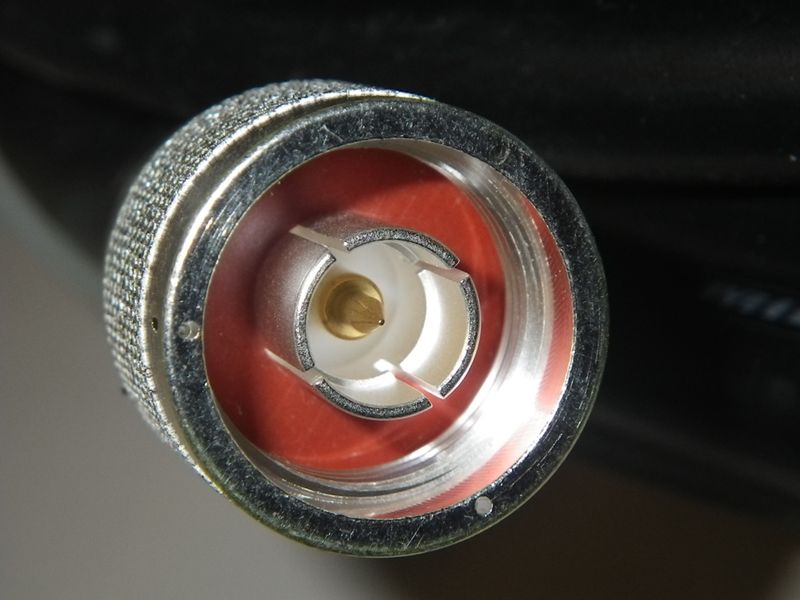

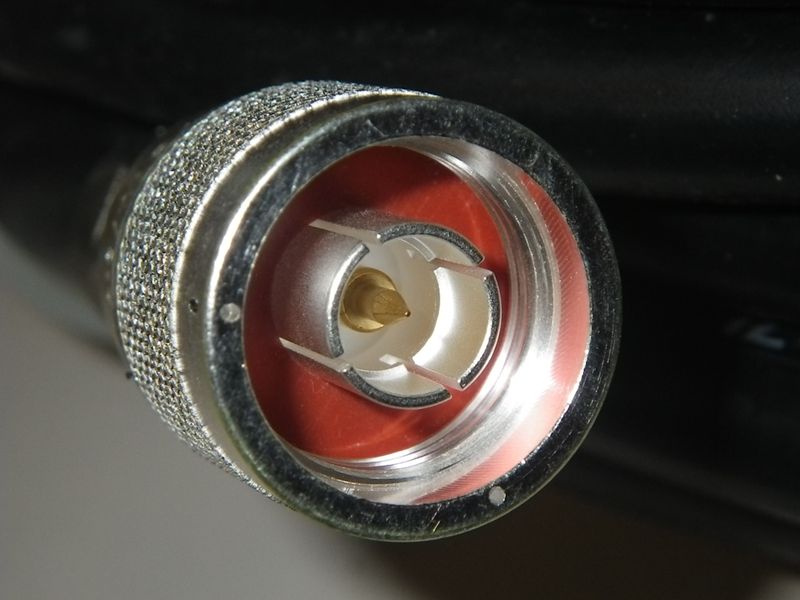

Special Features 2 M-39012/01-0007 connectors
Material Copper core conductor single conductor
Material Document and Classification QQ-W-343, soft fed spec single material response core conductor single conductor
